164-319WWT Kit - for Wiz Wide Track Frt End ...................16.00ea

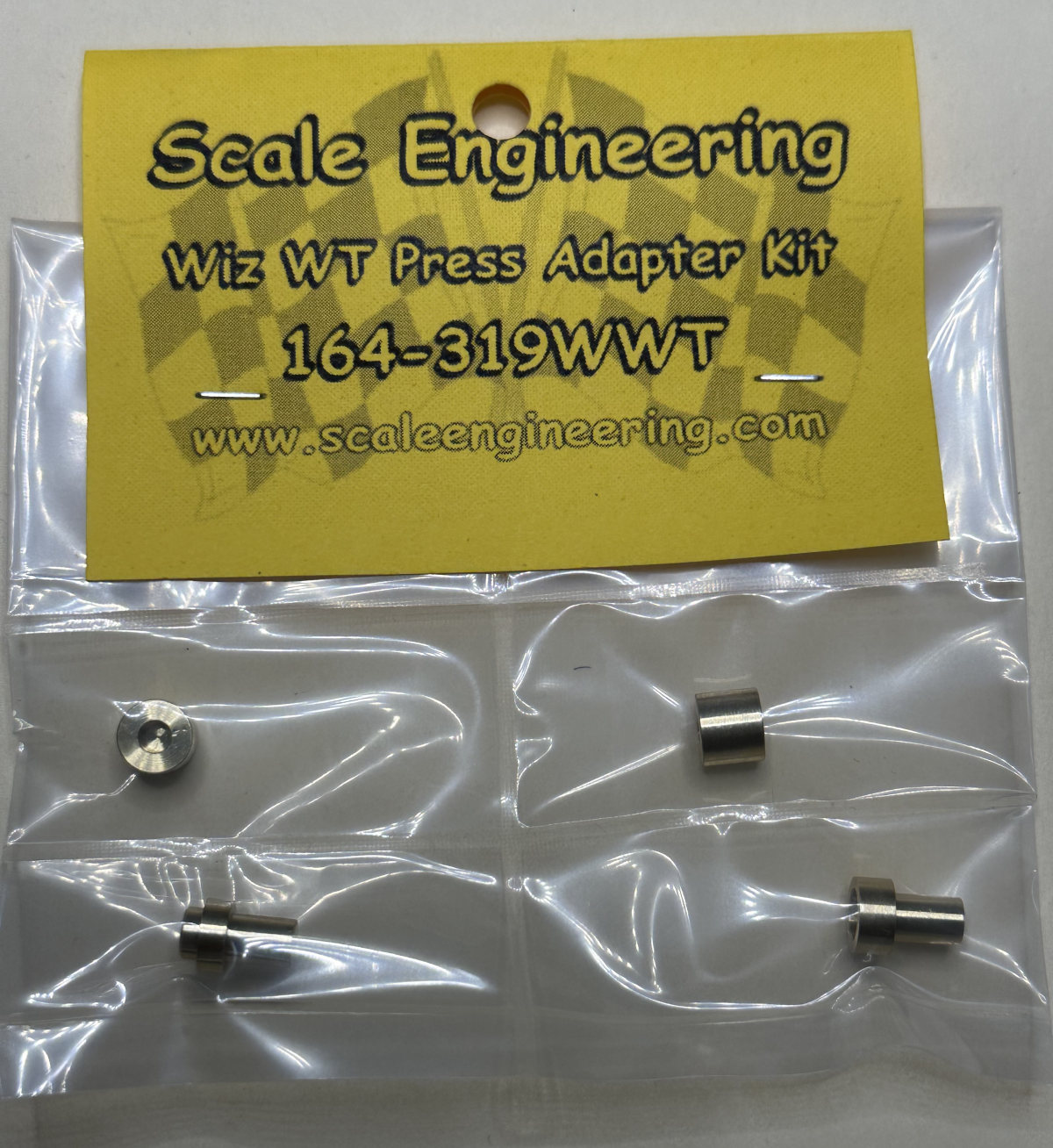

164-319WWT Kit:
Two Pc Precision Machined Brass Post Adapters.
Two pc Precision Machined Brass Cap Adapters.
164-318WWT Install Kit
16.00ea.

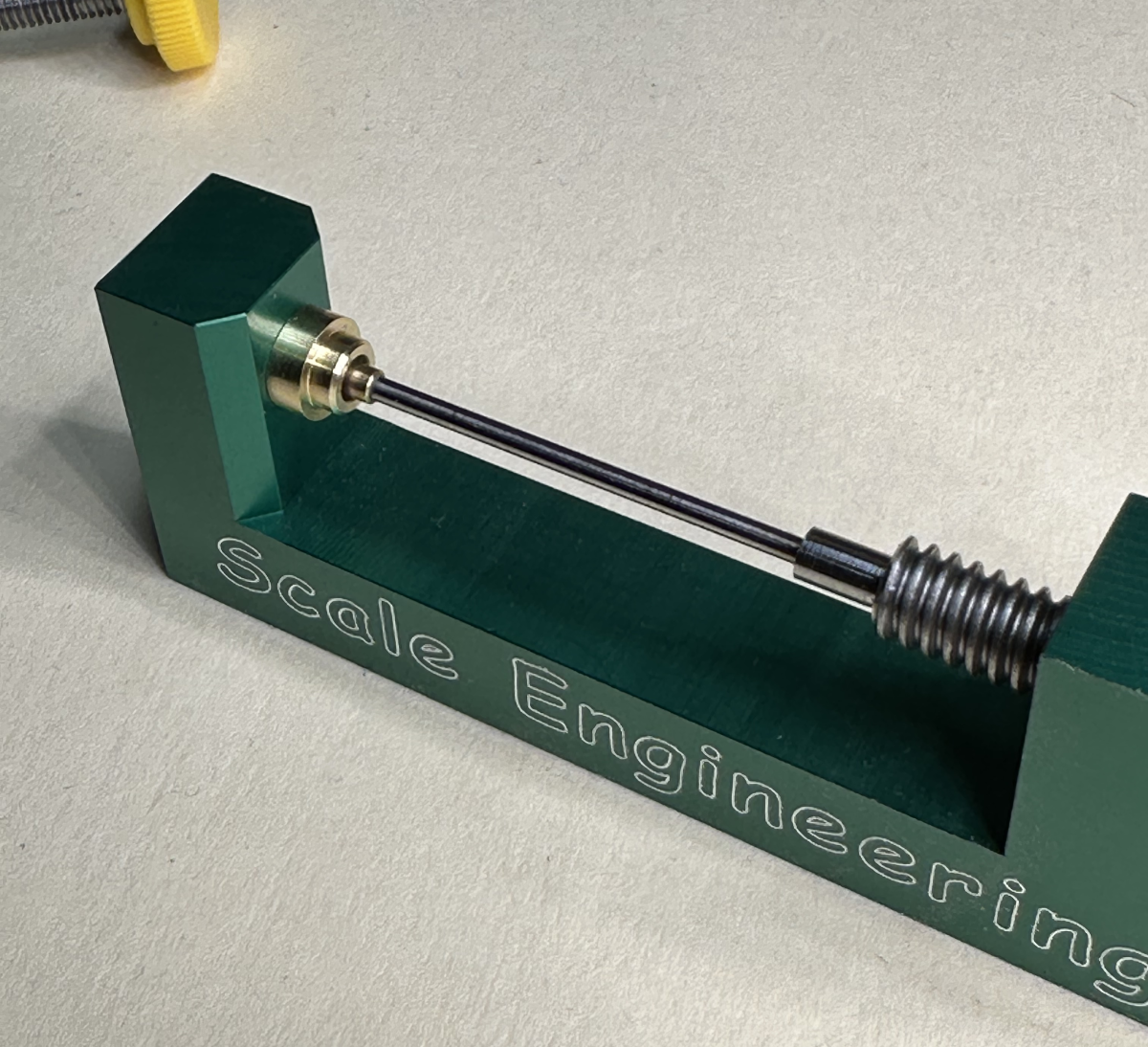

(Operation 1)
Small Hole Post Adapter being used to install
1st Axle Retainer

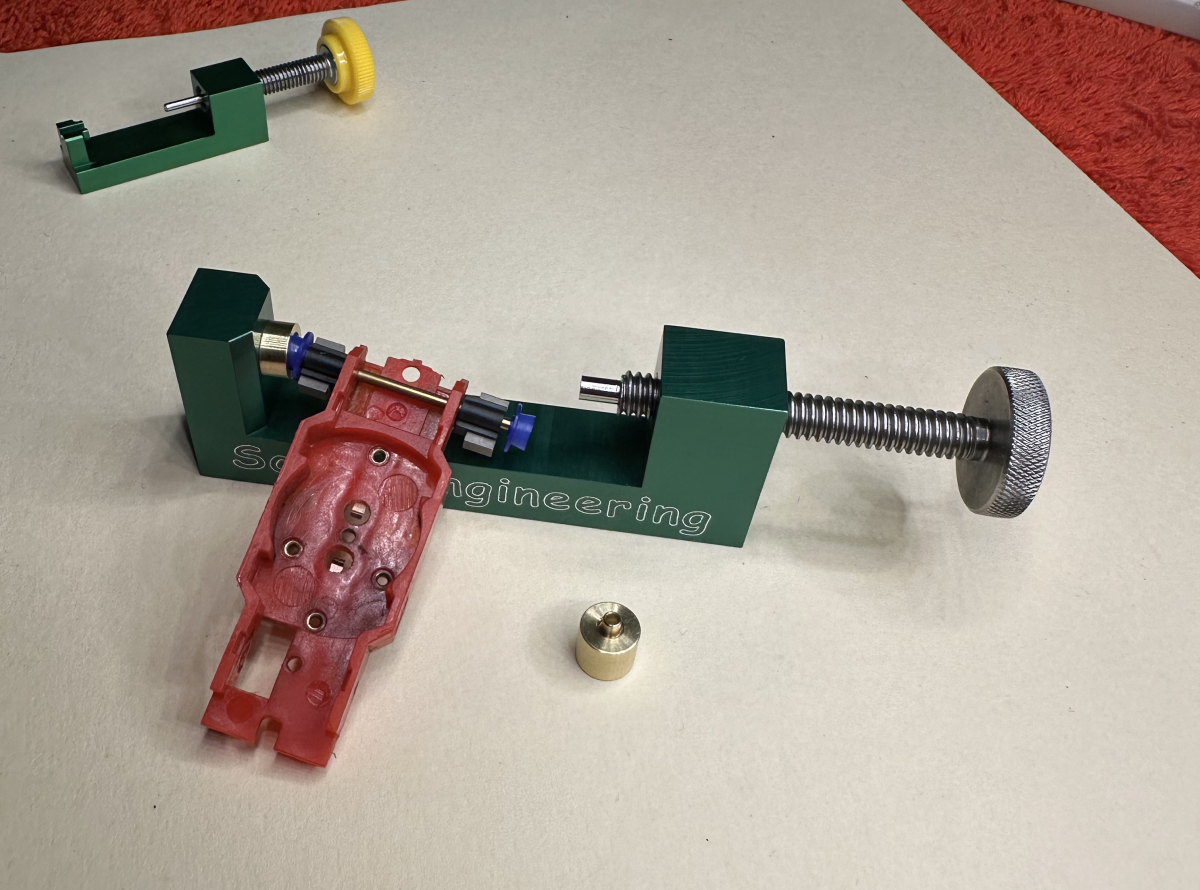

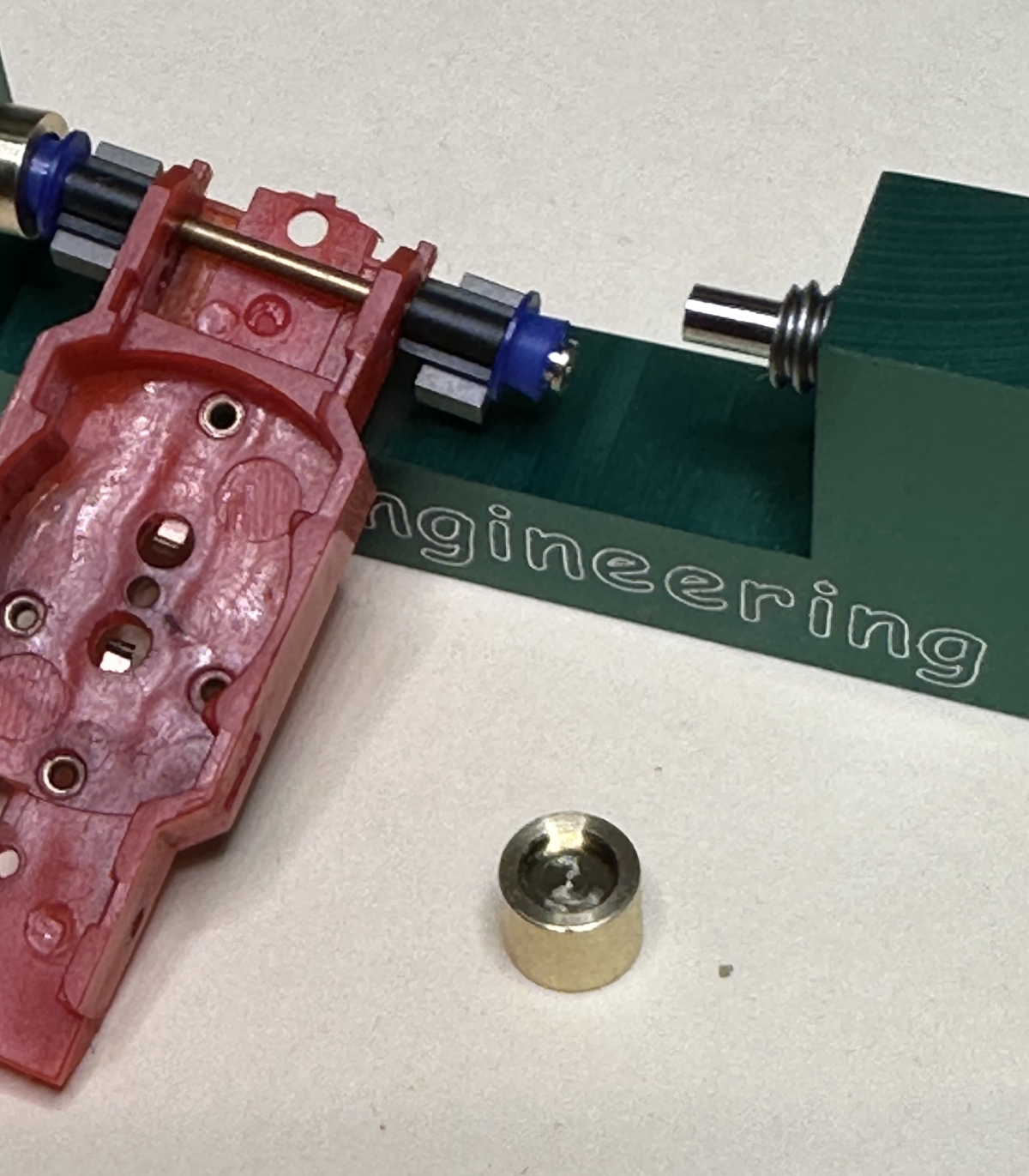

(Operation 2)
Assemble front end components, Then Use the Large Hole Post Adapter and Small Hole Cap Adapter for Pressing on 2nd Axle Retainer.
Use the small hole cap Adapter to just Start the 2nd Axle Retainer.
Use a bit of Grease to hole the retainer in the adapter.

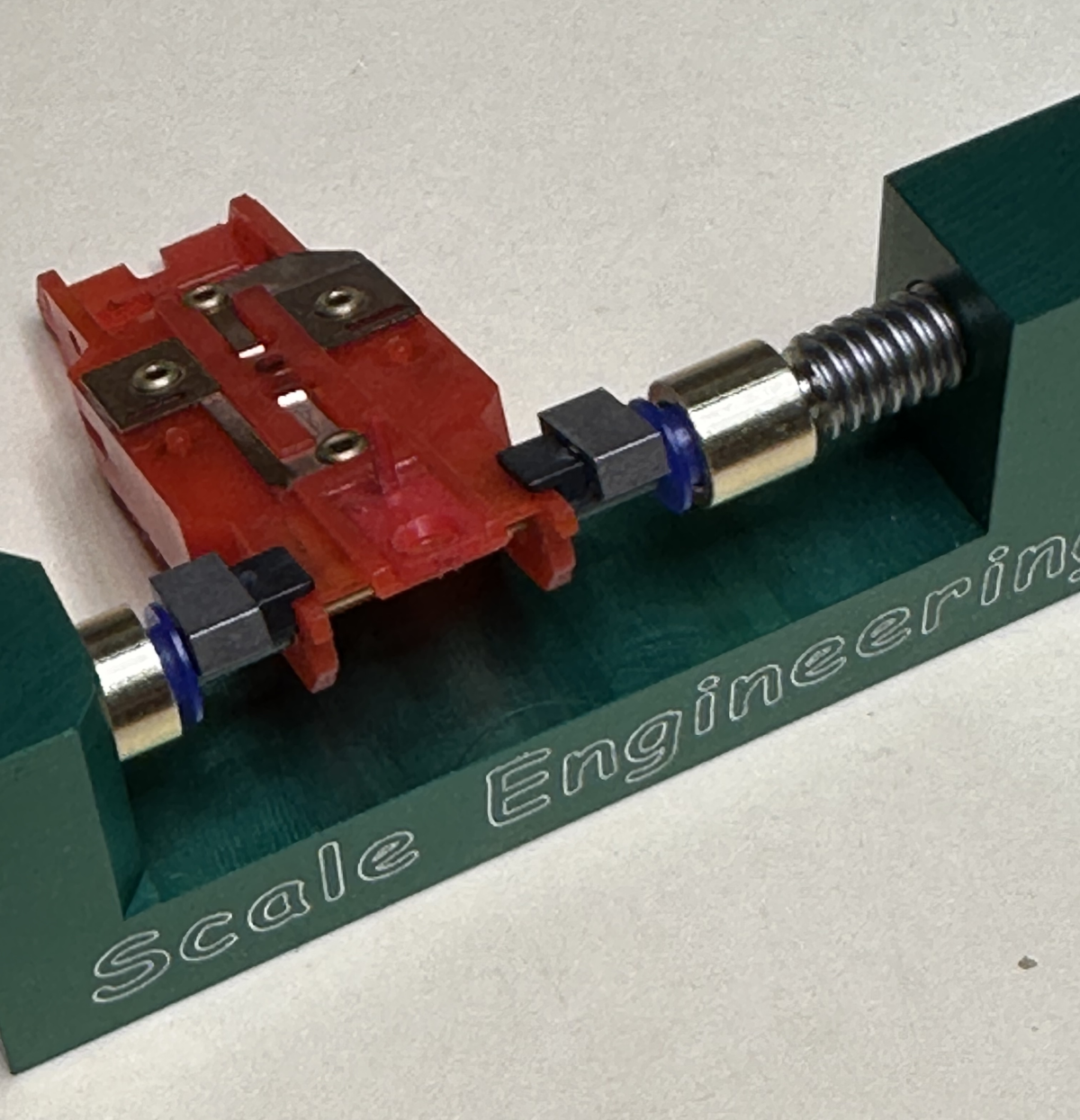

(Operation 3)
Use Large Hole Post Adapter and the large hole Cap Adapter to finish Pressing the 2nd Axle retainer in place.
(Operqtion 3)
Using the Large Post and the large hole cap adapters
Pressing the 2nd Retainer on Fully
